| ELECTRIC BICYCLE-2 12",16",20",24",26"electric bicycle, Lithium-ion battery ,alloy frame.... |
 |
 |

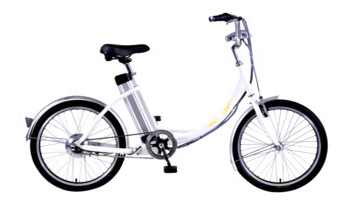

AES-09A |

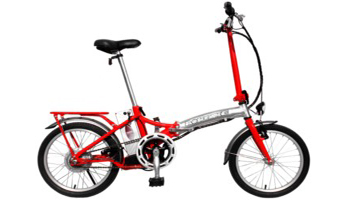

AES-10A |
-Frame: Aluminum
-Motor: 180W-250W High speed brushless DC intelligent front hub motor
-Battery: 24V10Ah/36V10Ah Lithium-ion battery
-Max speed: 25km/h -Range per charge: 45-50km
-Wheels: 20'' with Al alloy rims 20"*1.75 tire
-Weight: N. W/G. W: 23/25KGS(with battery)
-Loading capacity: 100kg -Charging time: 4 - 6h |
-Frame: Aluminum alloy folding frame
-Motor: 180W-250W High speed brushless DC intelligent hub motor
-Battery: 24V10Ah/36V10Ah Lithium-ion battery
-Max speed: 25km/h -Range per charge: 45-50km
-Wheels: 16'' with Al alloy rims 16"*1.75 tire
-Weight: N. W/G. W: 23/25KGS(with battery)
-Loading capacity: 100kg -Charging time: 4 - 6h |
 |
 |

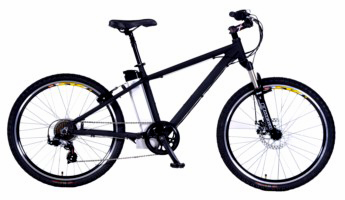

AES-11A |

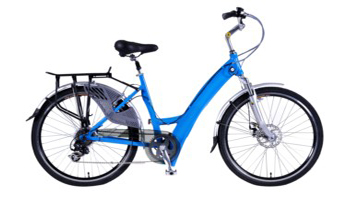

AES-12A |
-Frame: Aluminum alloy w/shimano 6 speed
-Motor:250W(EU)350W(USA) High speed brushless DC intelligent hub motor -Battery:36V10Ah Lithium-ion battery
Max speed: 25km/h(15mph) -Range per charge: 45-50km
-Wheels: 26'' with Al alloy rims 26"*1.75 tire
-Weight: N. W/G. W: 23/26KGS(with battery)
-Loading capacity: 125kg -Charging time: 4 - 6h |
-Frame: Aluminum alloy w/shimano 6 speed
-Motor:250W(EU)350W(USA) High speed brushless DC intelligent hub motor -Battery:36V10Ah Lithium-ion battery
Max speed: 25km/h(15mph) -Range per charge: 45-50km
-Wheels: 26'' with Al alloy rims 26"*1.75 tire
-Weight: N. W/G. W: 23/26KGS(with battery)
-Loading capacity: 125kg -Charging time: 4 - 6h |
 |
 |

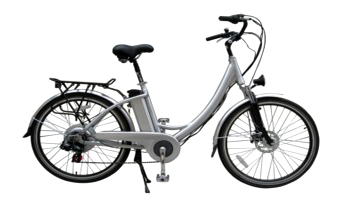

AES-14A |

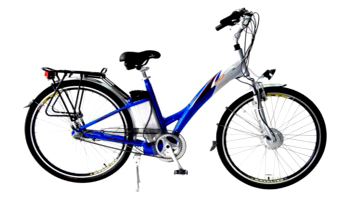

AES-16A |
-Frame: Aluminumadn suspension fork
-Motor: 180W-250W High speed brushless DC intelligent front hub motor
-Battery: 24V10Ah/36V10Ah Lithium-ion battery
-Max speed: 25km/h -Range per charge: 45-50km
-Wheels: 20'' with Al alloy rims 20"*1.75 tire
-Weight: N. W/G. W: 24/26KGS(with battery)
-Loading capacity: 100kg -Charging time: 4 - 6h |
-Frame: Aluminum and suspension fork
-Motor:250W(EU)350W(USA) High speed brushless DC intelligent hub motor -Battery:36V10Ah Lithium-ion battery
Max speed: 25km/h(15mph) -Range per charge: 45-50km
-Wheels: 24'' with Al alloy rims 24"*1.75 tire
-Weight: N. W/G. W: 23/26KGS(with battery)
-Loading capacity: 125kg -Charging time: 4 - 6h |
 |
 |
ATS-013R |
ATS-014R |
-Frame: Aluminum
-Motor:250W(EU)350W(USA) High speed brushless DC intelligent hub motor -Battery:36V10Ah Lithium-ion battery
Max speed: 25km/h(15mph) -Range per charge: 45-50km
-Wheels: 26'' with Al alloy rims 26"*1.75 tire
-Weight: N. W/G. W: 23/26KGS(with battery)
-Loading capacity: 125kg -Charging time: 4 - 6h |
-Frame: steel and suspension fork
-Motor: 250Watt Brushless Hub Motor with peak 950 watt rating
-Battery: 36 Volt 8Ah/12Ah Hours High Power Sealed Lead Acid(SLA)?
-Max speed: 20km/h -Range per charge: 25-35km
-Wheels: 20'' with Al alloy rims 20"*1.75 tire
-Weight: N. W/G. W: 23/25KGS(with battery)
-Loading capacity: 100kg -Charging time: 4 - 6h |
|
